How I Made a mini 1:12 scale pendant light for my dollhouse in SketchUp

Written by Megan Hornbecker

I’ve been fascinated with miniatures for as long as I can remember. 8 years ago I became addicted to modern miniatures. I had been carting around the dollhouse my mom made for me as a kid and thought it would be a fun project to redo the Country Victorian interior into something more contemporary. I searched online and found a few blogs that showcased modern miniatures and I was hooked. The only problem was there are very few artists out there making them. I started a blog, Modern Mini Houses, to feature the artists and designers I found making modern miniatures.

Since I couldn’t find some of the decor and furniture I’d see in designer stores and magazines, I figured I should try to make them in miniature. The next problem was I knew nothing about 3D modeling. I found Shapeways and tried out a few of the free 3D modeling programs they recommended and had the most success with SketchUp 8.

By no means am I an expert modeler, I taught myself by trial and error. I’d have an idea of what I wanted to make and would search for videos and tutorials until I figured out how to do it. I’m writing this tutorial to share some tips and tricks for beginners to get started making 3D models in SketchUp. I was using SketchUp 8. It has been updated and the new free version is SketchUp Make 2015. The tool icons look a little different but they work the same as in this tutorial.

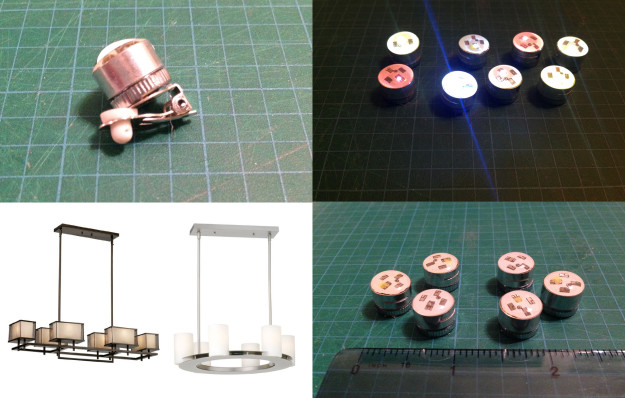

My designs are inspired by modern décor I want in full scale and by small pieces I find online or at random stores. I find something I like, work out the dimensions in 1:12 scale and then start designing. I found these LED battery operated earrings that I thought I could make into a cool light. The above two full-scale hanging lights inspired me to make a modern hanging pendant light with my LED lights, I like the structural supports on the bottom and the tall pendants.

I cut the clip-on earring attachments off the backs, arranged them where I thought they would work and measured the perimeter = 2.5″ x 1.25″. Each light is about 12mm wide by 10mm tall. To make sure the lights fit in the pendants I added 1mm of wiggle room and 1mm for each side of the wall so the pendant needed a 15mm diameter. I guessed the pendant should also be 15mm tall to hide the LED with room on top to be lit up by the light.

The Basics: Getting started in SketchUp

When you select the tool you want to use, the first mouse click in the drawing space starts the action that the tool is supposed to do and the second mouse click stops the action wherever you clicked. This works great for freehand design. If you want an exact measurement, click once where you want the action to start, move the curser the direction you want it to go, then type whatever dimension you want and hit Enter. There is no need for a second click, Hitting Enter will stop the action. Typing will fill in the dimension field in the bottom right corner field without having to click in that box. This field changes depending on which tool you have selected. If you select a tool, click once, but when you start to move the curser something crazy happens you didn’t want, just move the cursor back to the tools and click on another tool and the action will disappear. Undo/redo will be your friend as you get started figuring out how everything works.

Step 1: Add guides to define the perimeter of the light. Start to make first pendant.

1A Select the Tape Measurer tool. Click once anywhere on the Green Axis, move the curser to the right to move the guide, type in 2.5 and hit enter (the default is inches so you don’t need to type the “ symbol).

1B Zoom in so you can see the line. (On a Mac: 2 finger scroll up on our track pad to zoom in, down to zoom out. On a PC: Select the Zoom tool. Click and drag anywhere in the drawing area. Move the cursor up to zoom in and down to zoom out.) Click once anywhere on the Red Axis, move the cursor up to the right, type in 1.25 and hit enter. Now we have guides marking the perimeter of the light.

1C Select the Circle tool. Type 100 and hit enter. (This changes the Sides to have more line segments making the circle’s edge smooth and round. Sides set to 24 or 48 will print corners or ridges on the circle’s edge. If you zoom in really far, you’ll see that the circle is actually made up of lines). Click once anywhere outside of your guides and move curser to the right.

1D Type in 7.5mm and hit enter to set the Radius (=15mm diameter divided by 2).

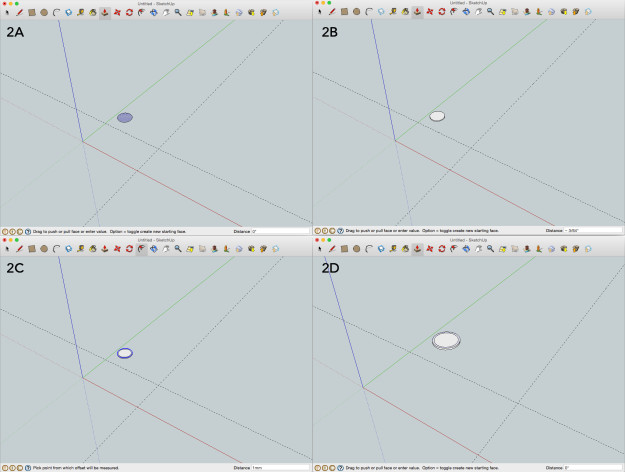

Step 2: Make base of pendant

2A Select the Push/Pull tool. Click once on the circle to select it, drag the curser up to make the base.

2B Type 1mm and hit enter to set the distance. Note the default is inches so sometimes it will change the Dimension to inches like ~ 3/64″ after you hit enter, other times it keeps the Dimension in mm.

Tip: I make all of my miniatures at least 1mm – 1.5m thick so it can be polished and so it looks true to scale. Sometimes I do thicker, but under 1mm is too flimsy, the walls can bend, and everything I’ve tested under 1mm wasn’t high enough quality for me so I ended up redesigning to be over 1mm. Save yourself some time and just start at 1mm or thicker.

2C Select the Offset tool. Mouse over the top outside edge and click once when it says “On Edge”. Move the cursor towards the middle. Type 1mm then hit enter.

2D Select the Push/Pull tool. Click once inside the 1mm ring you just made and move the cursor up. Type 14mm then hit enter (the base is already 1mm, so add14 mm and that gives us the 15mm height I determined at the beginning).

Step3: Move pendant inside perimeter guides

3A This will pull the walls up so we have the first pendant for our light.

3B Next, I want to move the pendant into position on the middle edge of the perimeter we measured out in Step 1. Select the Tape Measurer tool. Mouse over the intersection of the Blue, Green and Red Axis until the yellow “Origin” dot shows up, click once then move the curser up the Green Axis. Type .625 then hit enter (half the length of the 1.25″ side). If you haven’t saved yet, now is a good time.

3C Select the Orbit tool. Click and drag anywhere in the drawing area. Move the cursor to turn your perspective so you are behind the pendant. Select the Select tool (arrow in top left) and draw a box around the pendant to select the whole thing.

3D Select the Move tool. Find the most outer “Endpoint” on the pendant and click once, then move the curser to the “Guide Point” and click a second time to move it into the correct position.

Step 4: Copy and place second pendant

4A Select the Tape Measure tool. I’m not exactly sure where I want to put the second pendant so I’m going to mark two distances. Click once on the Intersection of the Green Axis and the guide on the left of the pendant. Type 20mm then hit enter. Repeat and type 22mm then hit enter.
4B Since we already have the pendant selected in blue, copy and paste (under Edit tab, or Ctrl+c/Command+c and Ctrl+v/Command+v), then click once to drop the copied pendant farther away from our workspace.

4C Select the Orbit tool, click and drag to move around the side. Zoom in or try the Pan tool (white hand) to get the perspective you need.

4D Select the Move tool. Find and click on the outer Endpoint then move and click on the 20mm Guide Point.

Step 5: Copy and place third pendant

5A The 20mm Guide was a little too close so I used the Move tool to put it on the 22mm Guide Point. I grabbed the wrong Endpoint so I used Orbit/Zoom/Pan tools to check on the bottom that the right Endpoint was on the Guide Point (if the pendant is on the line it’s perfect, if part of the pendant is over the guide line try grabbing the Endpoint that is over the line and move that to the Guide Point).

5B Orbit to the top, copy and paste the third pendant.

5C Orbit then select the Tape Measure tool. Click on Origin and move curser up the Red Axis, type 22mm then hit enter.

5D Move Endpoint to Guide Point.

Step 6: Copy and place other half of light

6A Orbit/Zoom out, select all (under Edit tab, or Ctrl+a/Command+a). This will copy all three pendants and the guides.

6B & C Paste (under Edit tab, or Ctrl+v/Command+v) and move cursor outside the perimeter and click to place. Select the Rotate tool. Click once on the top guide line when it says “On Line” so the Rotate tool is flat, then move cursor parallel to Green Axis so it is drawing a green line when it says On Green Axis then click a second time. Type 180 then hit enter.

6D Select the Move tool and match guide lines to move it into the perimeter.

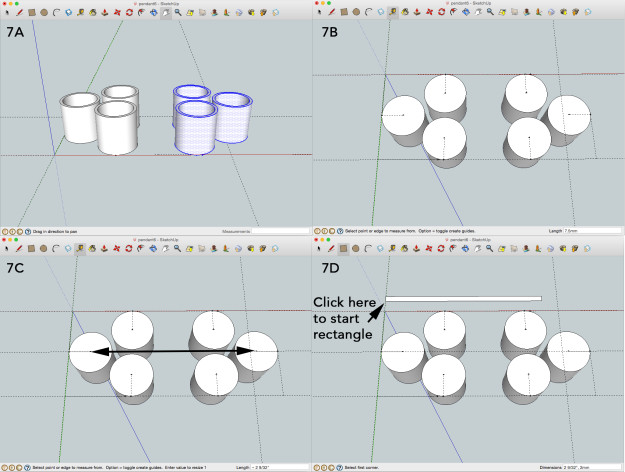

Step 7: Move and add center guide points

7A Looking again, it seems too tight so I moved it more to the right half an inch.

7B Orbit to the bottom. Select Tape Measurer click on any Endpoint edge of any circle, then move curser towards the middle. Type 7.5mm then enter. Do this on all of the pendant bottoms so we have the middle point to attach the supporting beams.

7C Select the Tape Measure tool. Measure from center guide point of one end to the other, which equals ~2 9/32″

7D Select the Rectangle tool. Click once above and away from current model and move curser up and to the right. Type 2 9/32, 2mm then hit enter. (Tip: I’m making the support bars 2mm thick to be strong enough to connect all six pendants so everything stays together in the polisher, and 2mm looks the most realistic at this scale)

Step 8: Add support beam

8A Select the Push/Pull tool and click on the new rectangle.

8B Move the curser up and type 2mm then hit enter. Use Select tool to draw a box around the new rectangle bar to select it.
8C Orbit to side view.

8D Select the Move tool. Click once on the Midpoint of the rectangle bar then move curser and click on the Guide Point in the middle of the pendant bottom.

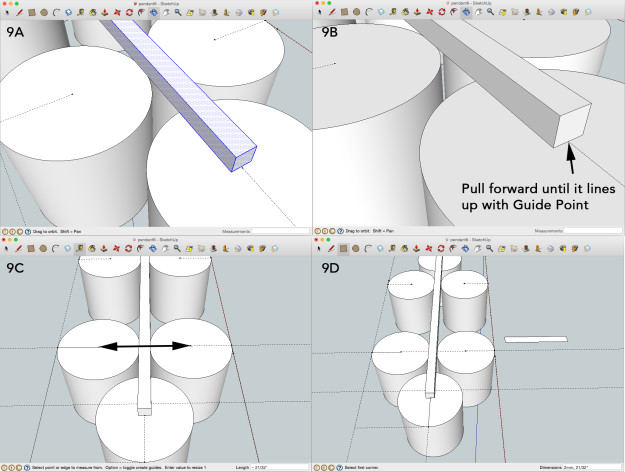

Step 9: Fix length and measure cross beam

9A Orbit to the other end of the rectangle bar and Zoom in. It’s a little short.

9B Select the Push/Pull tool. Click on the square end and pull forward then click on the Guide Point to line it up perfectly in the middle.
9C Orbit then measure the next center Guide Points = ~21/32″

9D Select the Rectangle tool. Click once above and away from current model and move curser up and to the right. Type 21/32, 2mm then hit enter.

Step 10: Add first cross beam

10A Select the Push/Pull tool. Click on the rectangle, type 2mm then hit enter.

10B Select the Select tool and draw a box around new cross bar to select all of it.

10C Orbit to side. Copy and Paste. Click to the side of the first bar to place the copied bar next to it. Select the Move tool. Click on the Midpoint.

10D Move curser to and then click on the Guide Point. (You know it’s in the right place if the tops of the two bars are flat.)

Step 11: Add second cross beam and adjust length

11A Repeat for the other cross bar. Use Select tool and draw a box around the other cross bar. (Tip: for any part you plan to move, it’s best to leave it far enough away from other components so you can easily draw the select box around it without selecting other things near it. You know it’s too close when you try to move it and things you didn’t intend to move go with it. Never fear, that’s what Undo is for. You will use it a lot. Just zoom in and adjust your perspective to be able to isolate a section you are trying to surround with the select tool in order to move only it.)

11B Select the Move tool. Click on the Midpoint of the bar, move curser to and then click on the Guide Point.

11C Orbit to the other side and we’ll see the bars are a little short again.

11D Zoom in and select Push/pull tool. Click on the end move curser to and click on the Guide Point.

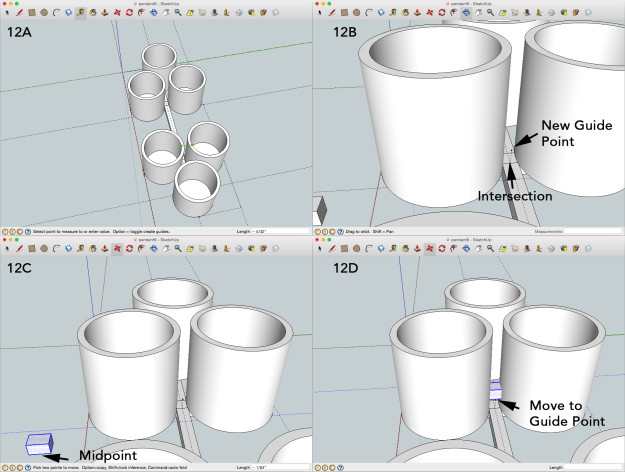

Step 12: Add cross bars to attach hardware

12A Orbit to the top. Almost done, but we need to add holes to be able to add hardware to hang the light. Measure between pendants (the two green dots in photo) = 5/32″. Select the Rectangle tool. Click once away to the left side of the light (sorry no photo, I didn’t take enough screen shots here) and move curser up and to the right. Type 5/32, 2mm then hit enter. Then use Push/Pull to grab the top and type 2mm then hit enter to create a small cross bar. Copy and Paste moving the second one out of the way.

12B Zoom in between where 3 of the pendants meet. The two horizontal lines are where the cross beam is connecting these two pendants and the dotted vertical line is the Guide we started with that runs down the middle. We’re going to add our new bar above this to create a hole. Select the Tape Measurer. Click on the Intersection of the middle guide and the lower horizontal line. Move the curser up until it is drawing a blue line parallel to the Blue Axis and sides of pendants. Type 2mm then hit enter.

12C Select the Select tool and draw a box around one of the new short cross bars to select all of it. Select the Move tool. Click on the Midpoint.

12D Move curser to the Guide Point and click to connect it. Orbit to the other side and repeat steps 12B C D to attach the second new short cross bar into place.

Step 13: Upload and print

13A DONE!! Save if you haven’t lately. Then go to File > Export 3D Model… then select Format: COLLADA File (*.dae)

13B Go to Shapeways, set up an account and then click Upload. Select your .dae file. Make sure you set the Model Units to “millimeters”.

13C Once the file is uploaded you can see which materials it is printable in and if there are any issues that won’t allow it to be printed. (If there are problems Shapeways explains the issues and links to more details on guidelines for each material and has a cool option to Fix Thin Walls for you.) I selected to print this in White Strong & Flexible Polished.

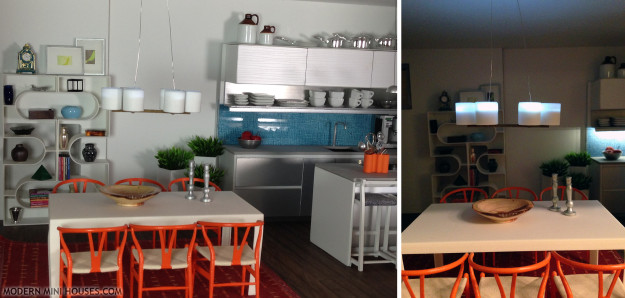

13D I ordered it on Jan 12 and it was on my doorstep on Jan 24. Every time I get an order from Shapeways, I still get excited. It’s just so cool to hold something in your hand that you created in digital format.

To save drying time, I painted the cross beams with a gold Sharpie (the strong & flexible material is very porous so GO SLOW as it easily sucks up the paint and spreads where you might not want it go. Or just use regular acrylic paint and a tiny brush). There was a little bit of powder residue in the holes to attach the hardware; I poked that out with a toothpick and then attached a wire to hang the pendant light 2.5” above the table (standard suggested height). Here is the finished pendant with the lights on and off in my dollhouse kitchen.
